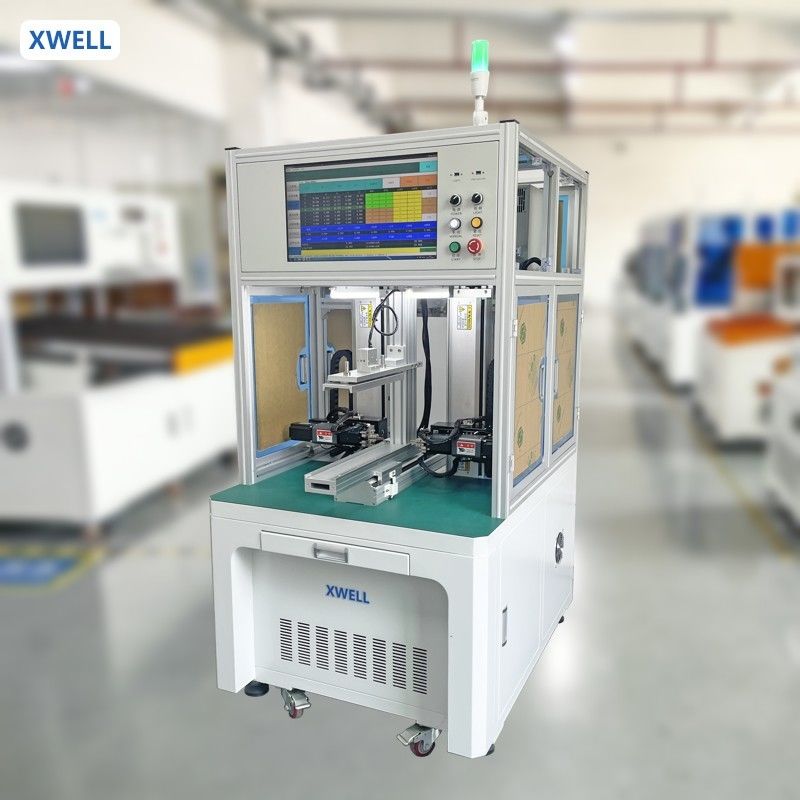

Double Sided Spot Welding Machine For Lithium Battery Pack

Double Sided Spot Welding Machine For Lithium Battery Pack

Product Description

This double-sided spot welding machine is equipped with a 10000A transistor welding power supply, which has the function of detecting the contact resistance between the weldment or the weldment and the welding needle. It can be well utilized to detect the welding resistance before spot welding, avoiding damage to the weldment and the welding needle during welding, and achieving high-precision and high reliability welding.

Features

*Support breakpoint start, automatic start, and manual start.

*Cold solder joint and sealing off alarm.

*Build-in welding current monitor, can display real time welding current.

*Can store dozens process of different battery packs product, switching products without re-setting parameters.

Product Advantages

1. Manual programming, CAD map, easy to learn, production line workers can be fully competent.
2. Production counting function, set the production quantity, and automatically stop when the output is completed.
3. Welding needle compensation function, set the number of welding needles, and automatically remind the welding needle maintenance when the number is reached
4. Aluminum alloy frame, imported acrylic guard plate, beautiful and elegant, strong sense of technology, visual operation to improve production safety factor.

Product Specification

Product Application

With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.

Product Operation

1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack)."
